Fiberglass Backing Pads & Flap Disc Adhesive

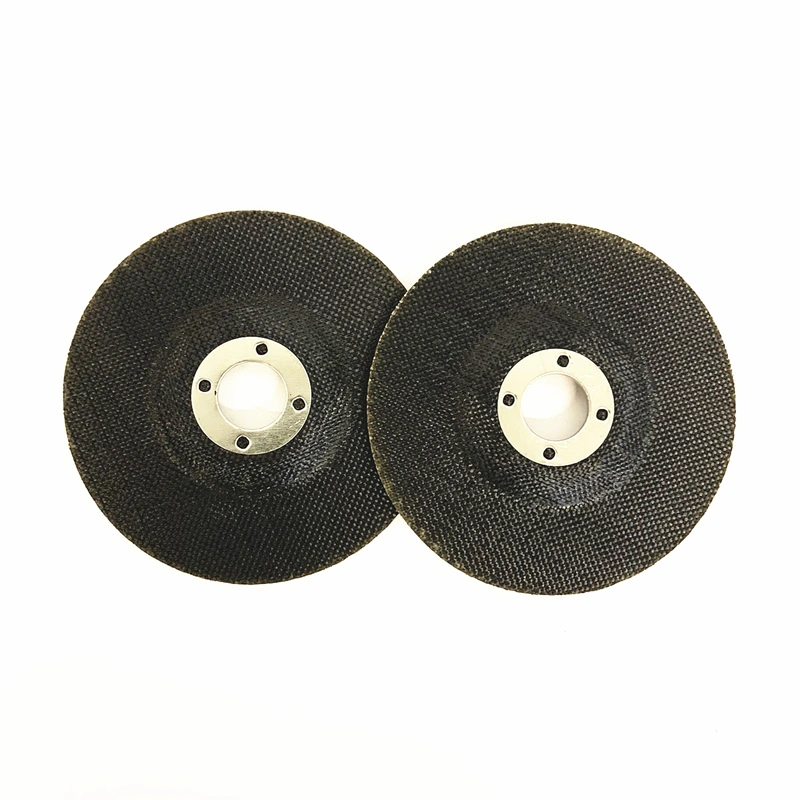

90mm T27 fiberglass backing pads 8+1 layers double ring

90mm T27 fiberglass backing pads 8+1 layers double ring

sku:

Fiberglass backing pads is mainly used for making flap discs ,clean and strip disc, wool felt disc, non woven flap discs, diamond flap disc and other abrasive discs


Size: 75mm 88mm 90mm 92mm 94mm 95mm 105mm 107mm 108mm 115mm 117mm 118mm 140mm 170mm


Description

Features

High Quality Fiberglass Cloth with Phenolic Resin

High-strength fiberglass cloth with good flexibility, light-weight

Excellent bonding property and heat resistance

Strict detection, full inspection and random testing before shipping

Specification
Outer Size:
Inner Hole Size
Size for making flap discs
 Layers
Metal Ring
         Type
75mm
16mm
4x5/8"
6-9 layers
1-2
T27 / T29
88 90 92mm
16mm
4x5/8"
6-12 layers
1-2
T27 / T29
105  107mm
22.23mm
4 1/2 x 7/8"
6-12 layers
1-2
T27 / T29
115 117mm
22.23mm
5 x 7/8"
7-12 layers
1-2
T27 / T29
                                    140mm
22.23mm
6 x 7/8"
 7-12 layers
1-2
T27 / T29
                                     170mm
22.23mm
7 x 7/8"
8-12 layers
1-2
T27 / T29
         220mm
22.23mm
        9 x 7/8"
10-14 layers
1-2
T27 / T29
